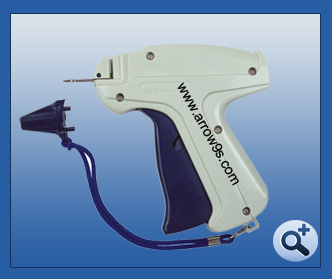

Arrow 9S pricing gun is the best economical, efficient and popular pricing gun, making it operators preferred choice of standard tag gun.
Tag guns are classified into two types mainly based on the type of tag pin it uses, which could be either standard tag pin or fine tag pin. Standard tag pin works with only standard tag gun, which has a bigger needle diameter, about 2.3mm. Fine tag pin works only with fine tag gun, which has a comparatively smaller needle diameter, about 1.29mm diameter. Do note standard tag pin will not work in fine tag gun, and fine tag pin will not work in standard tag guns.
Yes, there is a big difference between tag pins used in standard tag gun and fine tag gun. As mentioned above point, standard tag pin work only with standard tag gun, and fine tag gun works only with fine tag gun, the head of the tag pin which enters inside the tag guns is very different in terms of its size. The standard tag pin is normally 1.0mm diameter, while the head of fine tag pin is normally 0.8mm diameter.
There are different types of tag fasteners which may be used in a Arrow 9S standard tag gun: standard tag pin, standard hook tag pin, Standard ring tag pin, Standard V tag pin etc. We recommend our 'Arrow', 'Chokho', 'Wonder' & 'Universal' standard tag pins to be used with Arrow 9S tag gun. Color of Tag pins can be customized.
Technical Information about Arrow 9S Pricing Gun : |
||
Needle Diameter ( Arrow C121 ) |
: 2.20mm (Average) |
|
Maximum fabric thickness taggable with Arrow 9S pricing gun |
: 8.00mm |
|
Tag Pin Clip Type used in Arrow 9S |
: Standard 50 Pc Clip only |
|
Arrow 9S Tag Gun Body |
: ABS Plastic ( virgin raw material ) no recycled material used. |

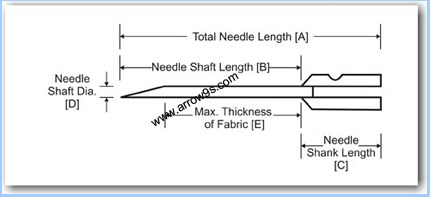

Total Needle Length :30.30 mm
Total Needle Shaft Length :20.80 mm
Total Needle Shank Length :9.50 mm
Total Needle Shaft Dia. : 2.0 mm
Max. Thickness of fabric : 8.0 mm
Total Needle Length :26.50 mm
Total Needle Shaft Length :17.30mm
Total Needle Shank Length :9.20mm
Total Needle Shaft Dia. : 1.8 mm
Max. Thickness of fabric : 10.0 mm
Total Needle Length :26.50 mm
Total Needle Shaft Length :17.30 mm
Total Needle Shank Length :9.20 mm
Total Needle Shaft Dia. : 2.00 mm
Max. Thickness of fabric : 10.0 mm
Total Needle Length :29.50 mm
Total Needle Shaft Length :20.50 mm
Total Needle Shank Length :9.0 mm
Total Needle Shaft Dia. : 1.85 mm
Max. Thickness of fabric : 10.0 mm
Total Needle Length :29.80 mm
Total Needle Shaft Length :19.30 mm
Total Needle Shank Length :10.50 mm
Total Needle Shaft Dia. : 1.90 mm
Max. Thickness of fabric : 10.0 mm
Total Needle Length :30.00 mm
Total Needle Shaft Length :20.50 mm
Total Needle Shank Length :9.50 mm
Total Needle Shaft Dia. : 2.20 mm
Max. Thickness of fabric : 10.0 mm
Total Needle Length :30.00 mm
Total Needle Shaft Length :20.50 mm
Total Needle Shank Length :9.50 mm
Total Needle Shaft Dia. : 2.20 mm
Max. Thickness of fabric : 10.0 mm
